MEDITERRÁNEO / ARENA

VARIANTS

iconos MEDITERRANEO 23

FIELD TILES

MEDITERRANEA-ARENA-A-330X665MM

33×66.5

33 x 66.5 cm 13.0” x 26.2”

10 mm
R9 / R11/C Anti-slip

MEDITERRANEA-ARENA-A-330X330MM

33 × 33

33 x 33 cm 13.0” x 13.0”

10 mm
R9 / R11/C Anti-slip

SPECIAL PIECES

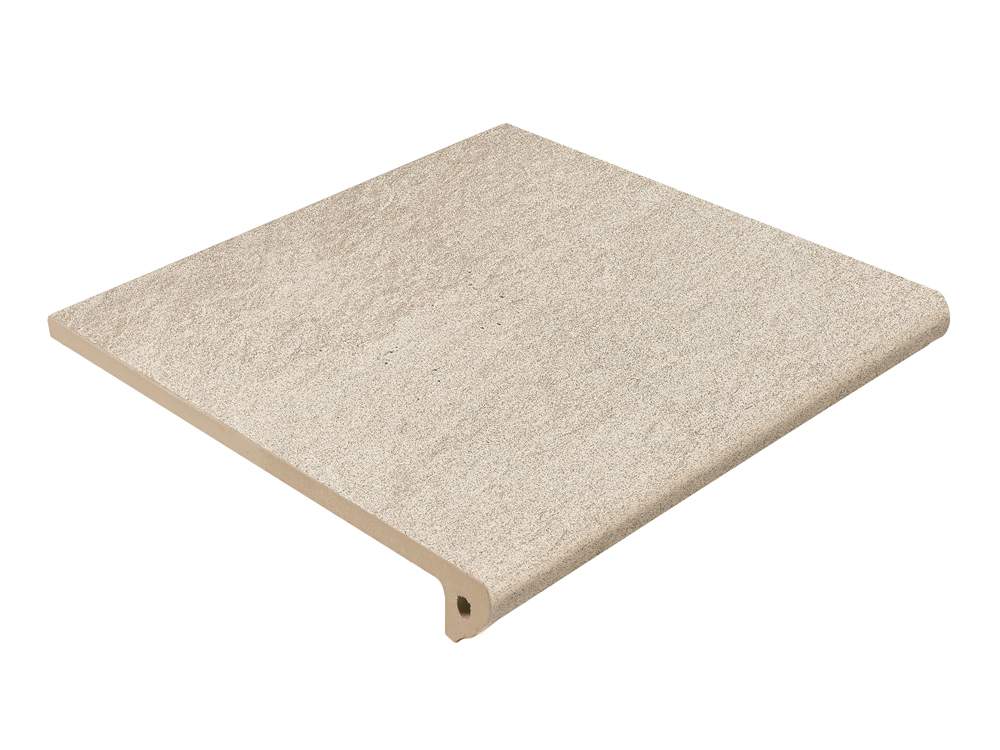

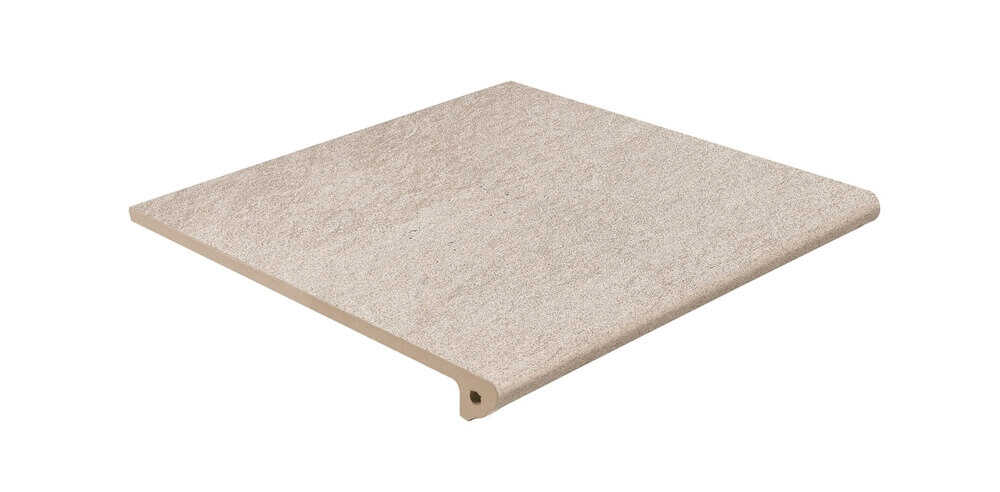

PELDANYO FIORENTINO MEDITERRANEO ARENA 33X33X3CM 1

STEP
FIORENTINO

33 x 33 x 3 cm – 13.0” x 13.0” x 1.2”

12 mm
R9 / R11/C Anti-slip

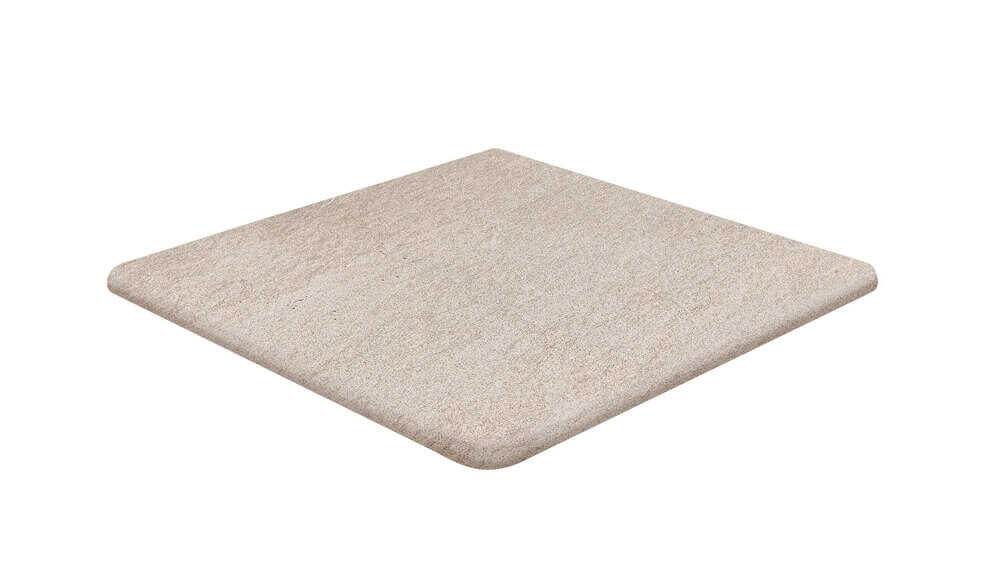

CARTABON FIORENTINO MEDITERRANEO ARENA 33X33X3CM 1

STEP TREAD CORNER
FIORENTINO

33 x 33 x 3 cm – 13.0” x 13.0” x 1.2”

14 mm
R9 / R11/C Anti-slip
rectified

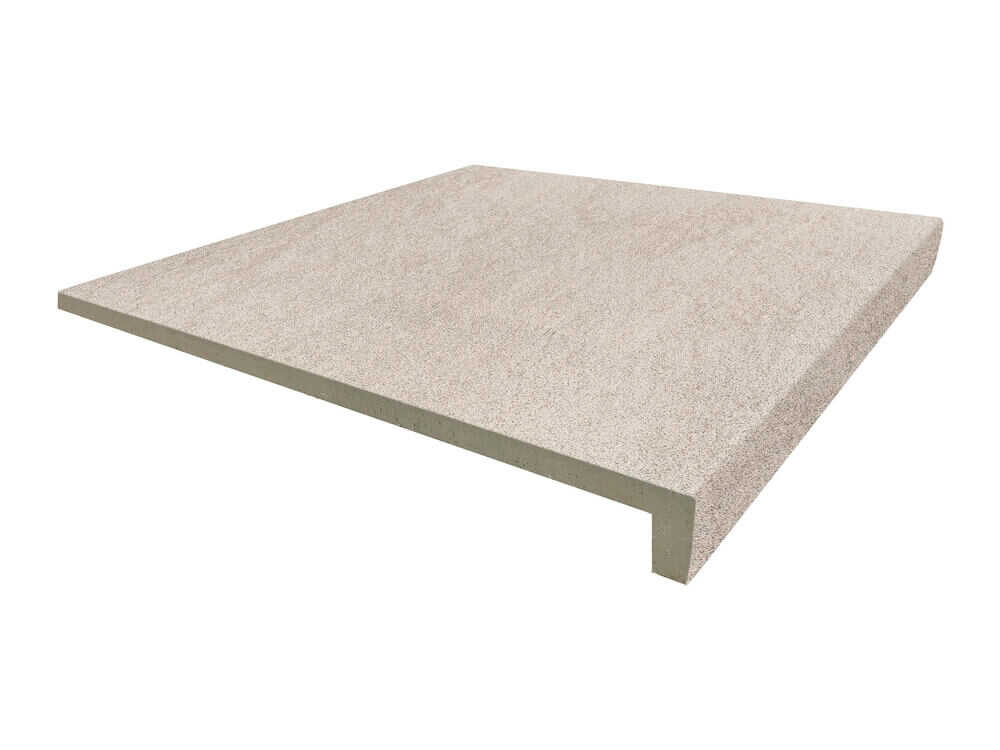

PELDANYO RECTO MEDITERRANEO ARENA 33X33X3CM 1

STEP
SQUARE

33 x 33 x 3 cm – 13.0” x 13.0” x 1.2”

12 mm
R9 / R11/C Anti-slip

ZANQUIN FIORENTINO MEDITERRANEO ARENA 325 izda

LEFT FIORENTINO MITERED SKIRTING

32,8 x 32,8 cm – 12.9”x 12.9”

11 mm

ZANQUIN FIORENTINO MEDITERRANEO ARENA 325 dcha

RIGHT FIORENTINO MITERED SKIRTING

32,8 x 32,8 cm – 12.9”x 12.9”

11 mm

ZANQUIN INGLETADO RECTO MEDITERRANEO ARENA 328 izda 1024x1024 1

LEFT STRAIGHT MITERED SKIRTING

32,8 x 32,8 cm – 12.9″ x 12.9”

11 mm

ZANQUIN INGLETADO RECTO MEDITERRANEO ARENA 328 dcha 1024x1024 1

RIGHT STRAIGHT MITERED SKIRTING

32,8 x 32,8 cm – 12.9″ x 12.9”

11 mm

RODAPIE MEDITERRANEO ARENA 9X33CM

SKIRTING

9 x 33 cm – 3.5”x 13.0”

11 mm

VIERTEAGUAS MEDITERRANEO ARENA 12X33X3CM

WINDOW SILLS

12 x 33 x 3cm – 3.6” x 13.0” x 1.2”

12 mm

PASAMANOS 12 MEDITERRANEO ARENA 120X665X40MM

12* HANDRAIL

12.5 x 66.5 x 4 cm - 4.9" x 26.2" x 1.6" *Inner dimensions

PASAMANOS 15 MEDITERRANEO ARENA 150X665X40MM

15* HANDRAIL

15.5 x 66.5 x 4 cm - 6.1" x 26.2" x 1.6" *Inner dimensions

MEDITERRÁNEO / GRAFITO

VARIANTS

iconos MEDITERRANEO 23

FIELD TILES

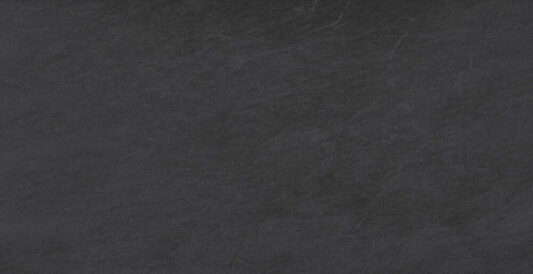

MEDITERRANEA-GRAFITO-A-330X665MM

33×66.5

33 x 66.5 cm 13.0” x 26.2”

10 mm
R9 / R11/C Anti-slip

MEDITERRANEA-GRAFITO-A-330X330MM

33 × 33

33 x 33 cm 13.0” x 13.0”

10 mm
R9 / R11/C Anti-slip

SPECIAL PIECES

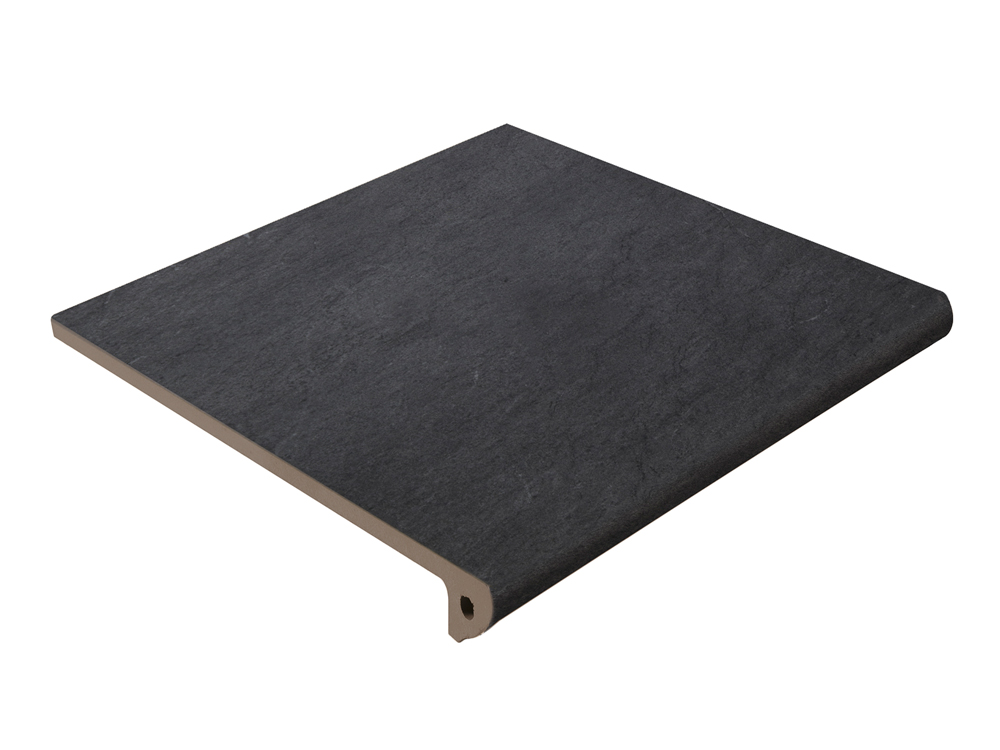

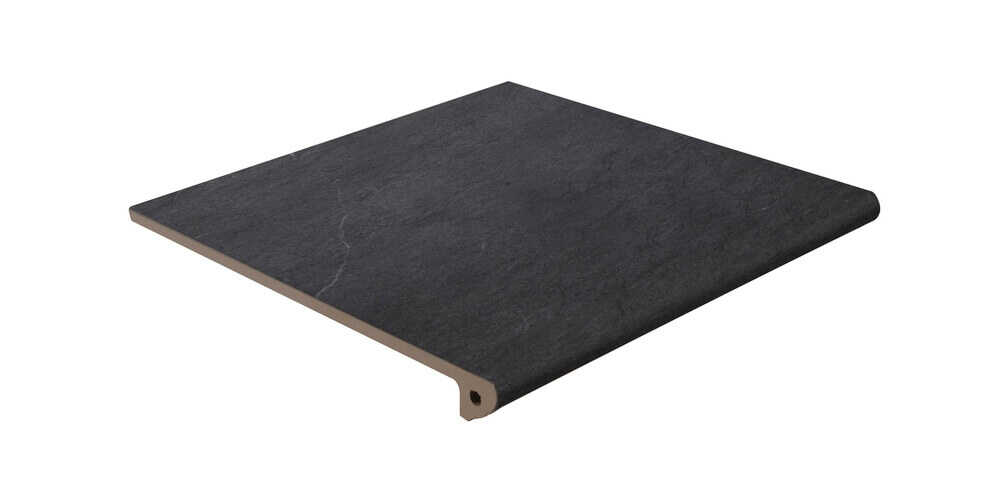

PELDANYO FIORENTINO MEDITERRANEO GRAFITO 33X33X3CM 1

STEP
FIORENTINO

33 x 33 x 3 cm – 13.0” x 13.0” x 1.2”

12 mm
R9 / R11/C Anti-slip

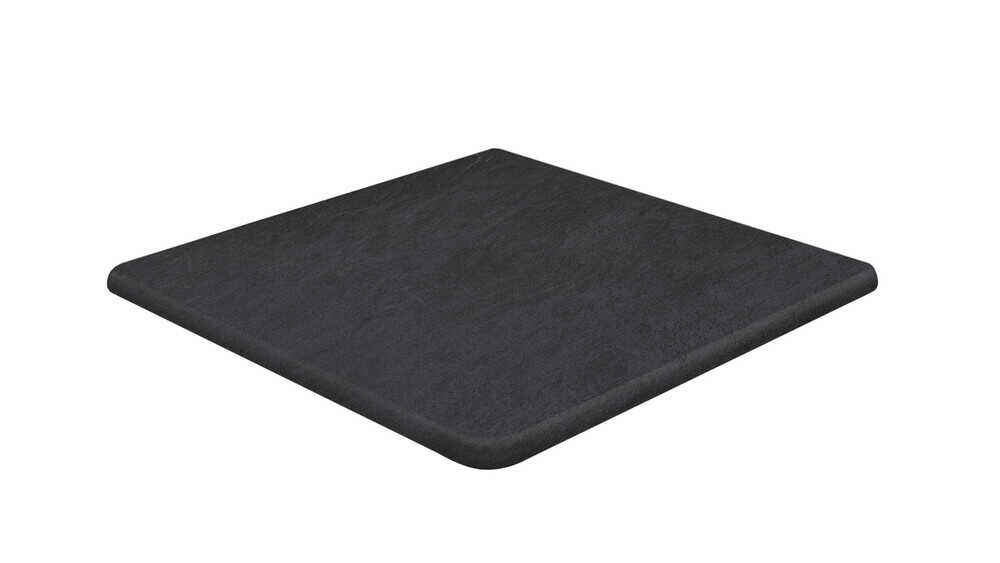

CARTABON FIORENTINO MEDITERRANEO GRAFITO 33X33X3CM 1

STEP TREAD CORNER
FIORENTINO

33 x 33 x 3 cm – 13.0” x 13.0” x 1.2”

14 mm
R9 / R11/C Anti-slip
rectified

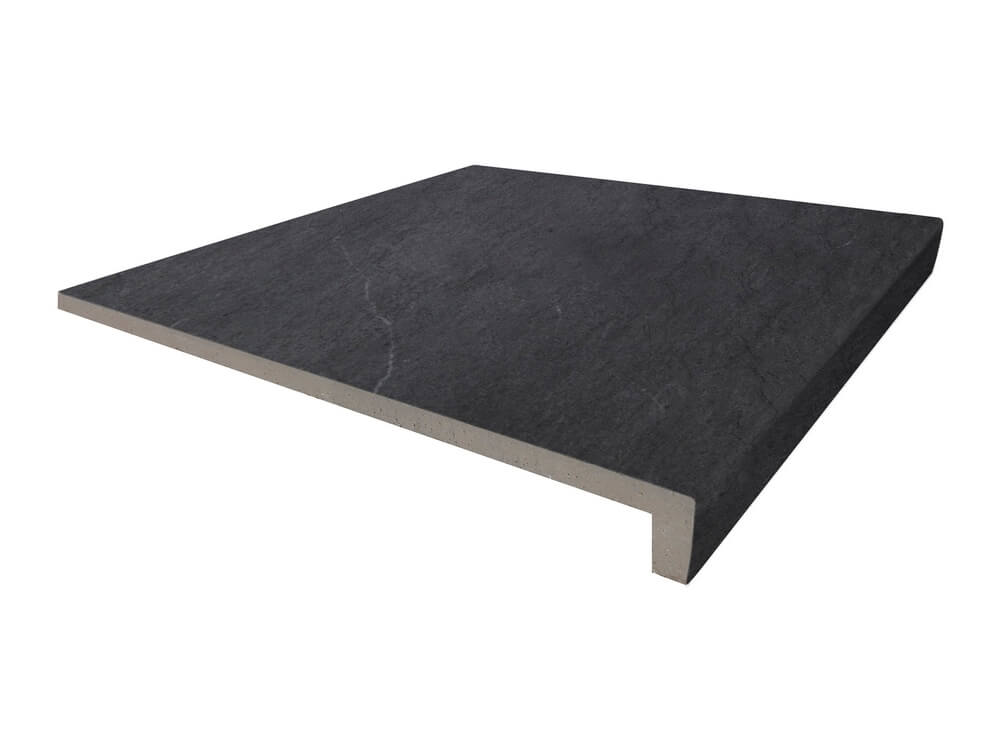

PELDANYO RECTO MEDITERRANEO GRAFITO 33X33X3CM 1

STEP
SQUARE

33 x 33 x 3 cm – 13.0” x 13.0” x 1.2”

12 mm
R9 / R11/C Anti-slip

ZANQUIN FIORENTINO IZQ MEDITERRANEO GRAFITO 395X175MM

LEFT FIORENTINO SKIRTING

17,5 x 39,5 cm – 6.9” x 15.6”

7.5 mm

ZANQUIN FIORENTINO DCHA MEDITERRANEO GRAFITO 395X175MM

RIGHT FIORENTINO SKIRTING

17,5 x 39,5 cm – 6.9” x 15.6”

7.5 mm

ZANQUIN RECTO IZQ MEDITERRANEO GRAFITO 423X175MM

LEFT STRAIGHT SKIRTING

17,5 x 42,3 cm – 6.9″ x 16.7”

7.5 mm

ZANQUIN RECTO DCHA MEDITERRANEO GRAFITO 423X175MM

RIGHT STRAIGHT SKIRTING

17,5 x 42,3 cm – 6.9″ x 16.7”

7.5 mm

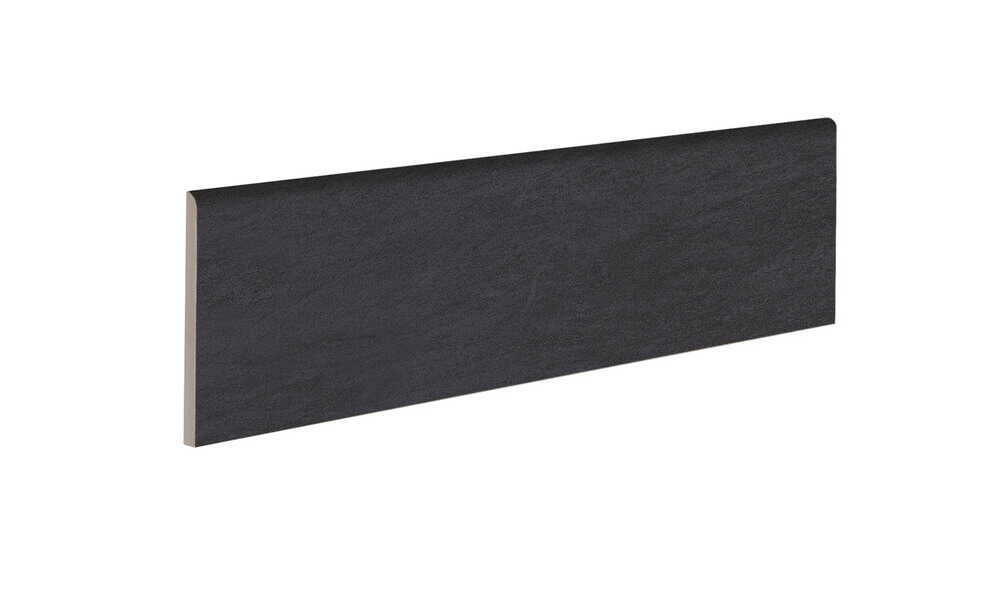

RODAPIE MEDITERRANEO GRAFITO 9X33CM

SKIRTING

9 x 33 cm – 3.5”x 13.0”

11 mm

VIERTEAGUAS MEDITERRANEO GRAFITO 12X33X3CM

WINDOW SILLS

12 x 33 x 3cm – 3.6” x 13.0” x 1.2”

12 mm

PASAMANOS MEDITERRANEO GRAFITO 120X665X40MM

12* HANDRAIL

12.5 x 66.5 x 4 cm - 4.9" x 26.2" x 1.6" *Inner dimensions

PASAMANOS MEDITERRANEO GRAFITO 150X665X40MM

15* HANDRAIL

15.5 x 66.5 x 4 cm - 6.1" x 26.2" x 1.6" *Inner dimensions

MEDITERRÁNEO
PIECES
BOXES
PALLETS
MANUFACTURING MEASURES
33 x 33 cm - 10 mm Field tile
9 pcs. / m2
9 pcs. / 22.18 Kg
52 boxes / 1,153 Kg
-
33 x 66.5 cm - 10 mm Field tile
4,50 pcs. / m2
5 pcs. / 25,00 Kg
40 boxes / 1.000 Kg
-
9 x 33 cm - 11 mm Skirting
3 pcs. / ml
24 pcs. / 13.92 Kg
68 boxes / 947 Kg
-
12 x 33 x 3 cm - 12 mm Window sills
3 pcs. / ml
16 pcs. / 18.05 Kg
52 boxes / 938Kg
-
33 x 33 x 3 cm - 14 mm Rounded step tread corner
-
1 pcs. / 4.80 Kg
92 boxes / 442 Kg
-
17,5 x 39,5 cm - 75 mm Left/Right Fiorentino mitered skirting
-
14 pcs. / 10.00 Kg
54 boxes / 540 Kg
-
32.8 x 32.8 cm - 11 mm (arena) Fiorentino mitered skirting left/right
-
12 pcs. / 16,66 Kg
68 boxes / 1.132 Kg
-
33 x 33 x 3 cm - 12 mm square step tread
3 pcs. / ml
4 pcs. / 12.04 Kg
56 boxes / 674 Kg
-
33 x 33 x 3 cm - 12 mm Fiorentino step tread
3 pcs. / ml
4 pcs. / 13,64 Kg
56 boxes / 764 Kg
-
17,5 x 39,5 cm - 75 mm Left/Right Straight mitered skirting
-
14 pcs. / 10.00 Kg
54 boxes / 540 Kg
-
32.8 x 32.8 cm - 11 mm (arena) Straight mitered skirting
-
12 pcs. / 16,67 Kg
68 boxes / 1.133 Kg
-
12.5 x 66.5 x 4 cm Handrail
1,50 pcs. / ml
5 pcs. / 18.80 Kg
26 boxes / 489 Kg
-
15.5 x 66.5 x 4 cm Handrail
1,50 pcs. / ml
5 pcs. / 21.45 Kg
20 boxes / 430 Kg
-
