ROCA / POLAR

VARIANTS

iconos roca

BASES

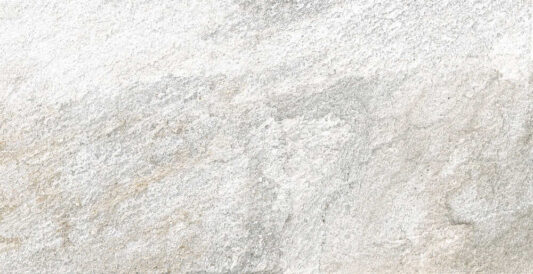

BASE-ROCA-POLAR-33X67CM

33×66.5

33 x 66.5 cm 13.0” x 26.2”

10 mm
C-1/C-3

BASE-ROCA-POLAR-33X33CM

33 × 33

33 x 33 cm 13.0” x 13.0”

10 mm
C-3

SPECIAL PIECES

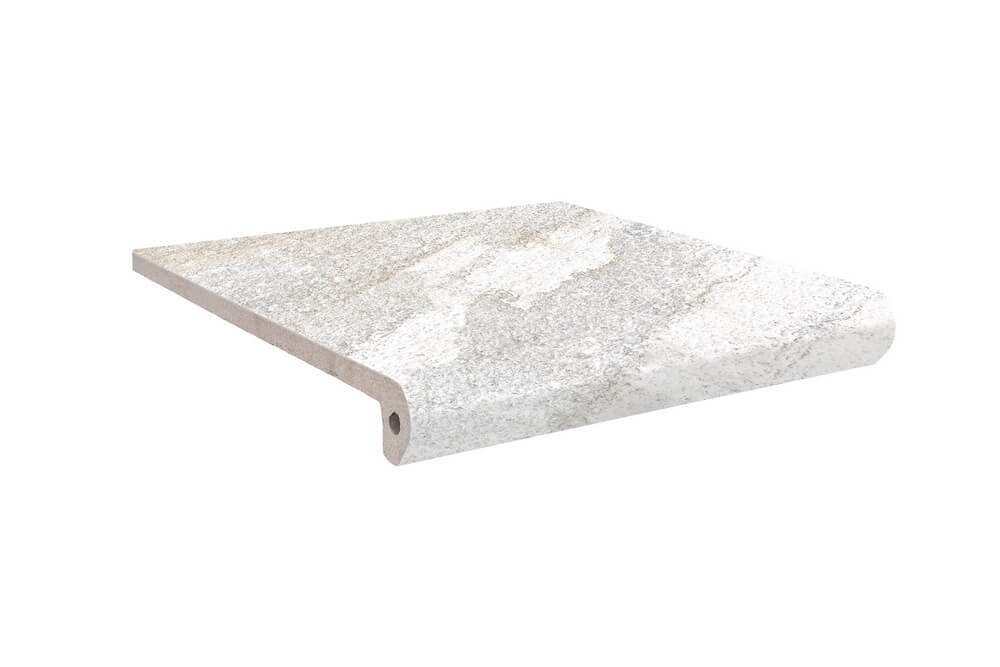

PELDANYO ML ROCA POLAR 33X33X4CM

STEP
ML

33 x 33 x 4 cm – 13.0” x 13.0” x 1.6”

13 mm
C-3

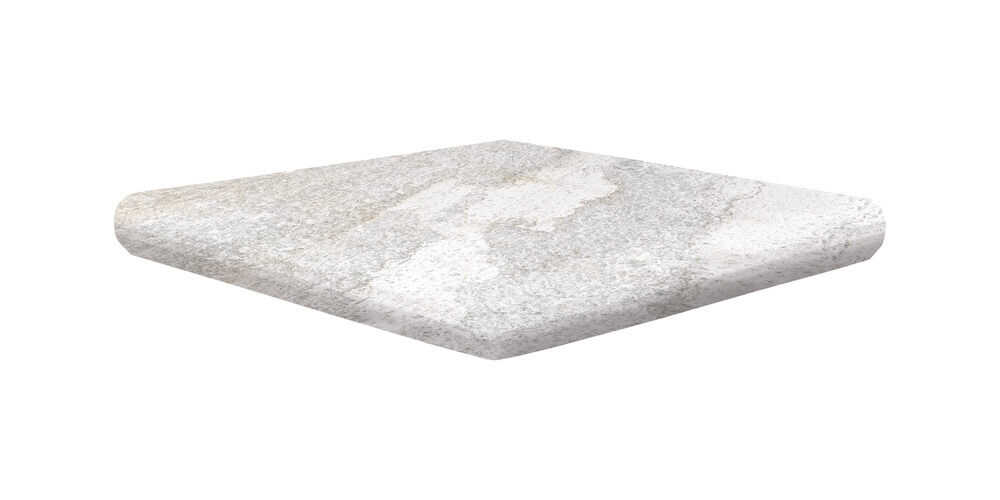

CARTABON ML ROCA POLAR 33X33X4CM

BEVEL
ML

33 x 33 x 4 cm – 13.0” x 13.0” x 1.6”

14 mm
rectified
C-3

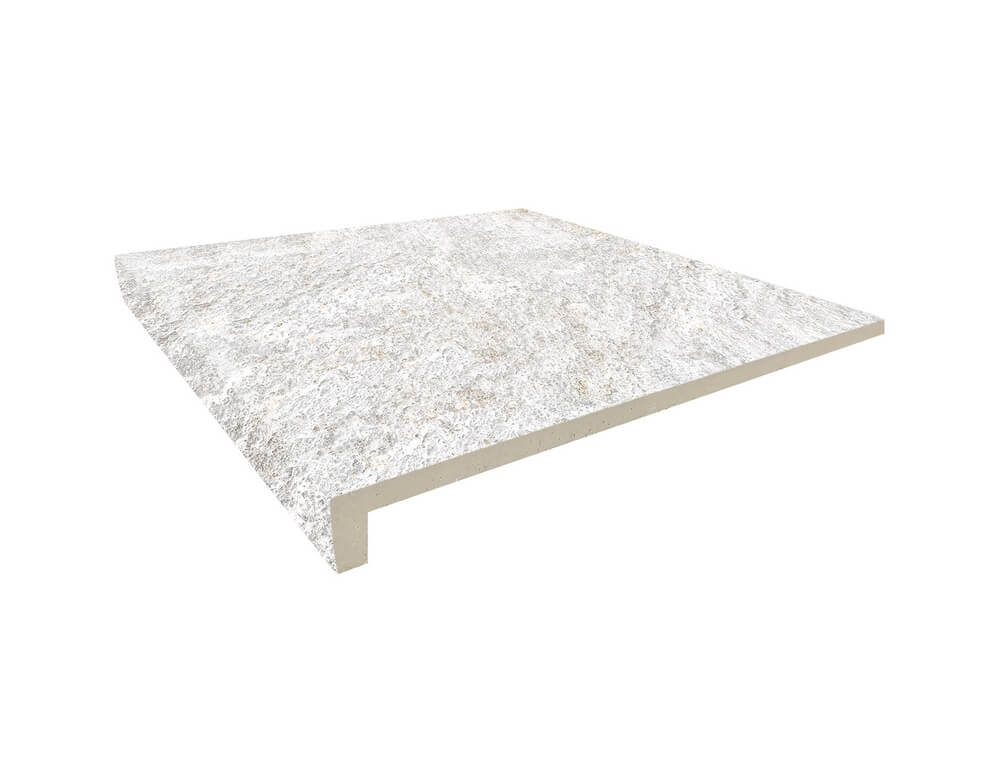

PELDANYO RECTO ROCA POLAR 33X33X3CM

STEP
SQUARE

33 x 33 x 3 cm – 13.0” x 13.0” x 1.2”

12 mm
C-1/C-3

ZANQUIN ML IZQ ROCA POLAR 395X175MM

HR SKIRTING BOARD
LEFT

39.5 x 17.5 cm – 15.6” x 6.9”

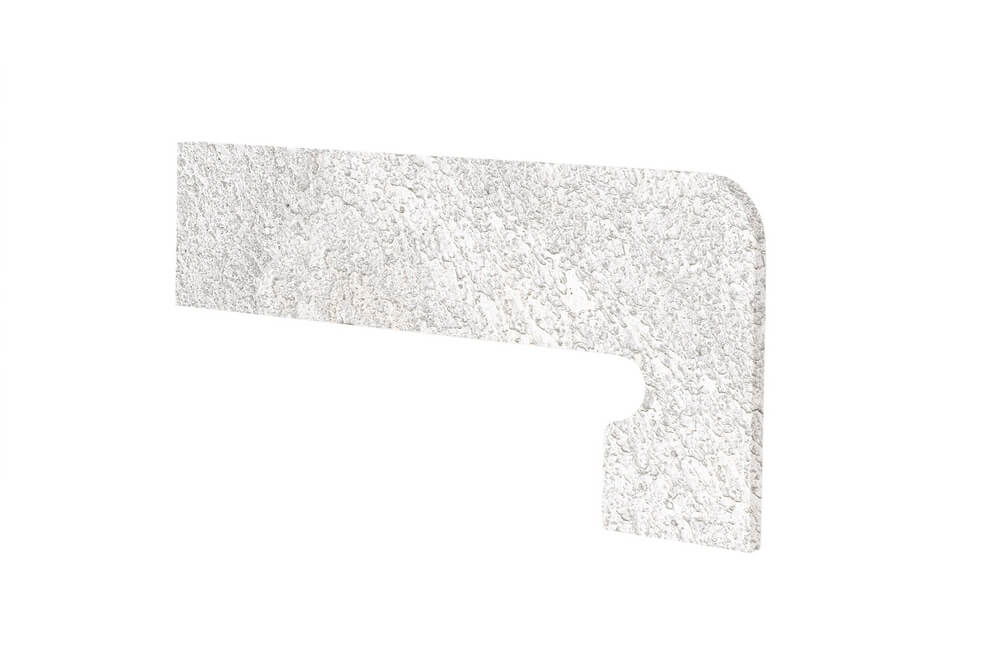

ZANQUIN ML DCHA ROCA POLAR 395X175MM

HR SKIRTING BOARD
RIGHT

39.5 x 17.5 cm – 15.6” x 6.9”

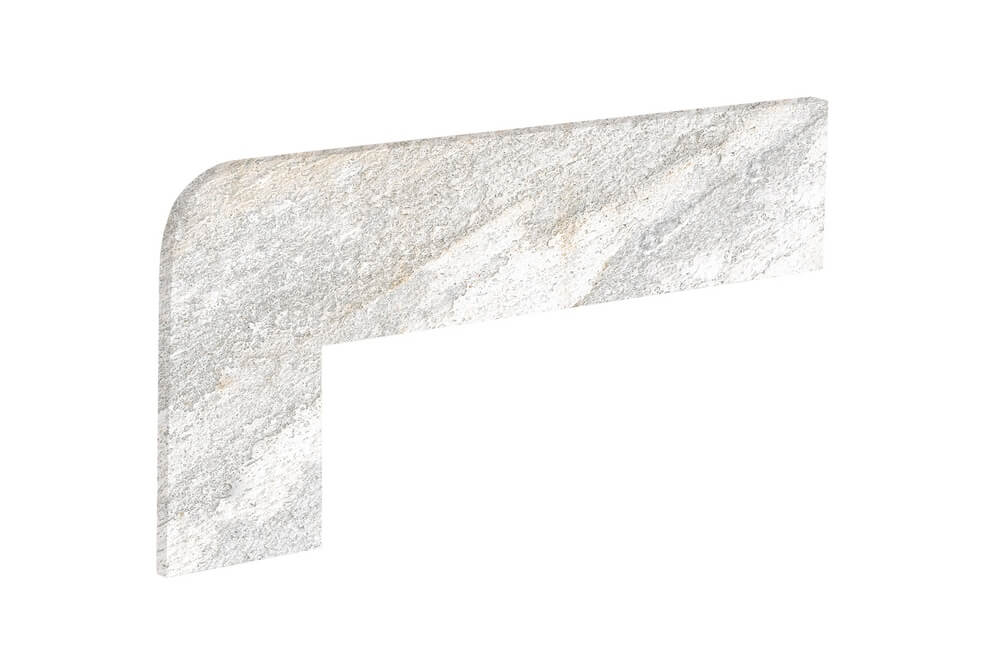

ZANQUIN RECTO IZQ ROCA POLAR 423X175MM

SKIRTING BOARD
SQUARE
LEFT

42.3 x 17.5 cm – 16.7” x 6.9

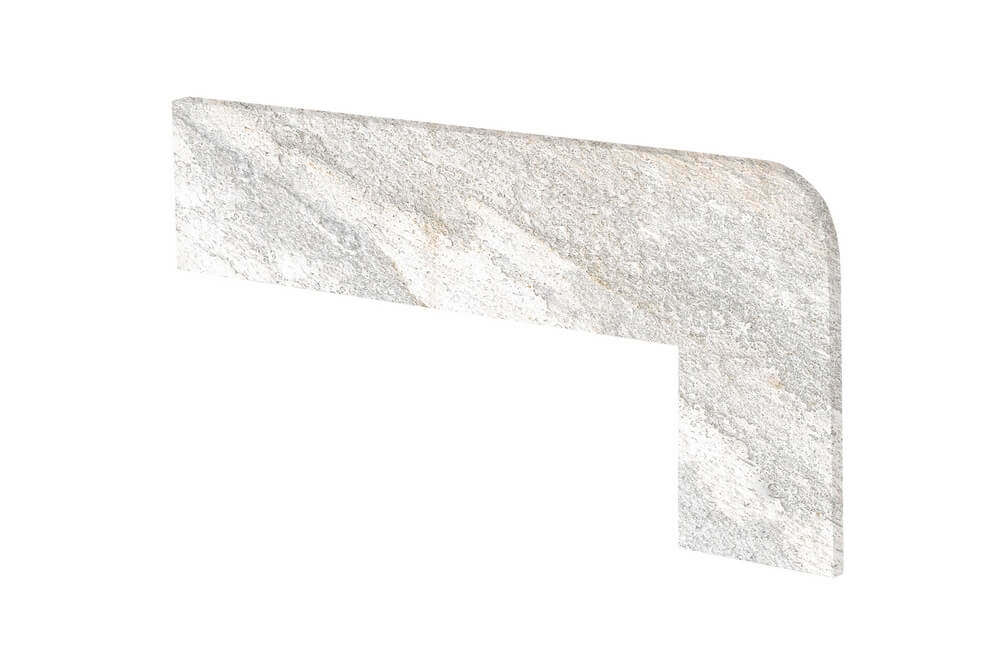

ZANQUIN RECTO DCHA ROCA POLAR 423X175MM

SKIRTING BOARD
SQUARE
RIGHT

42.3 x 17.5 cm – 16.7” x 6.9

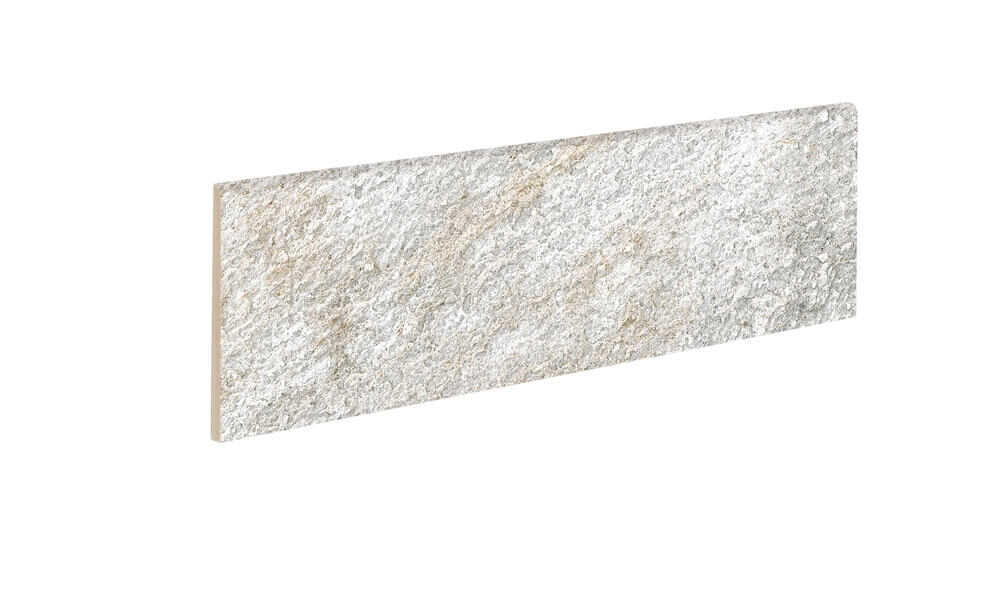

RODAPIE ROCA POLAR 9X33CM

SKIRTING BOARD

9 x 33 cm – 3.6”x 13.0”

11 mm

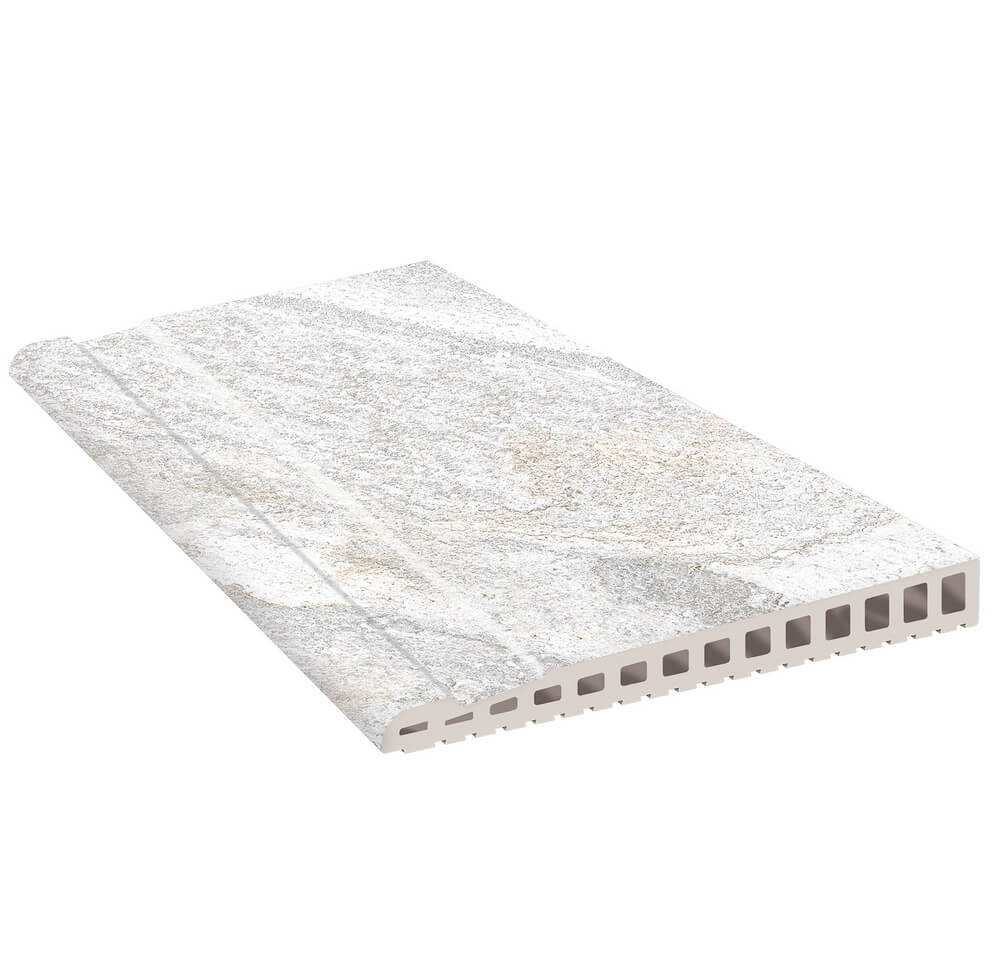

BORDE DESBORDANTE ROCA POLAR

OVERFLOW EDGE

28 x 66.5 cm – 11.0” x 26.2”

rectified
C-3

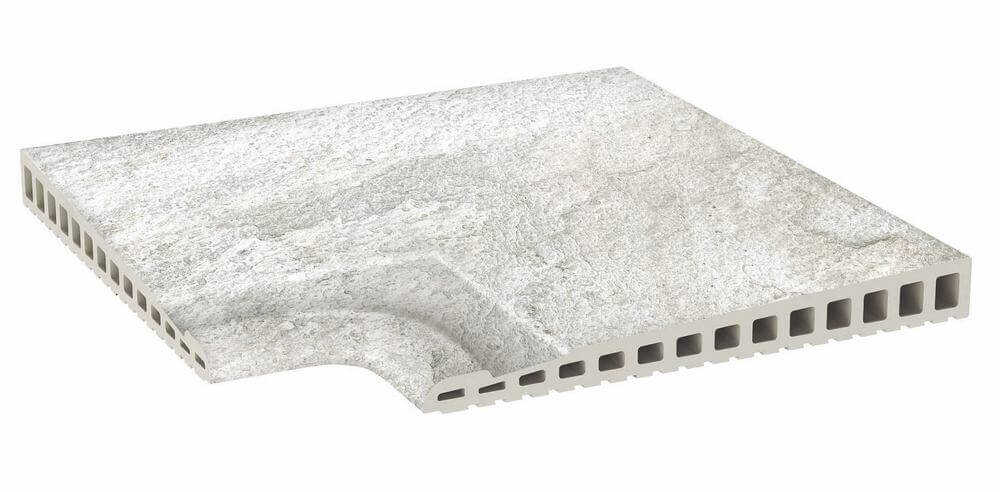

ANGULO DESBORDANTE ROCA POLAR 33X33

OVERFLOW CORNER

31 x 31 cm – 12.2” x 12.2”

rectified
C-3

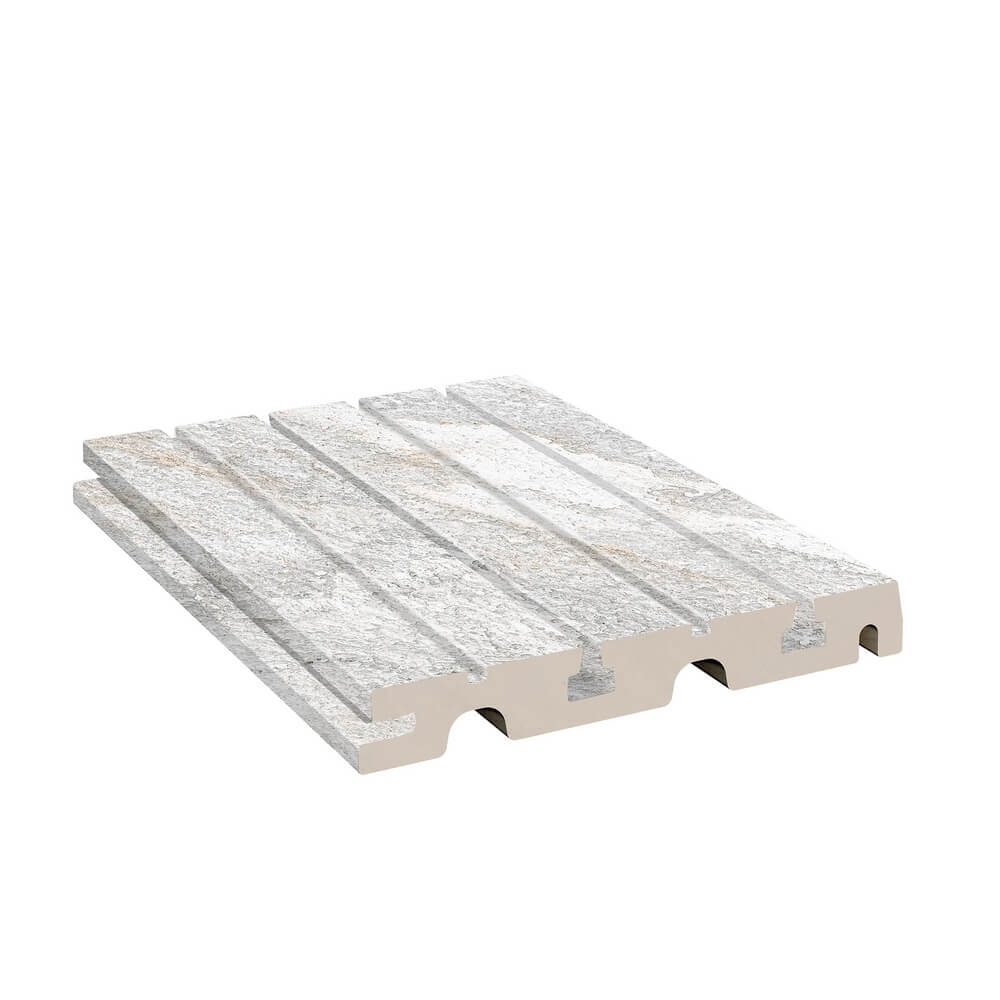

REJILLA ROCA POLAR 245X245CM

GRATING

24.5 x 24.5 cm – 9.6” x 9.6”

rectified
C-3

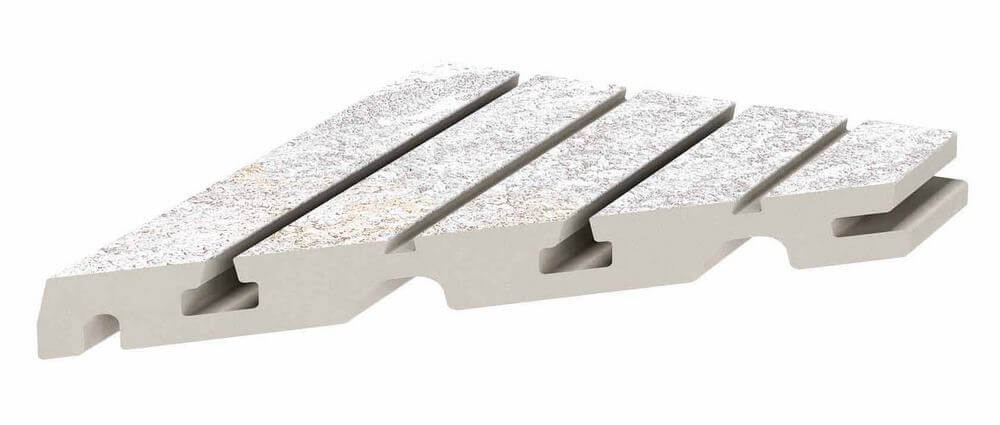

ANGULO REJILLA DCHA ROCA POLAR 245X33

GRATING CORNER
RIGHT*

24.5 x 33 cm – 9.6” x 13.0”

rectified
C-3

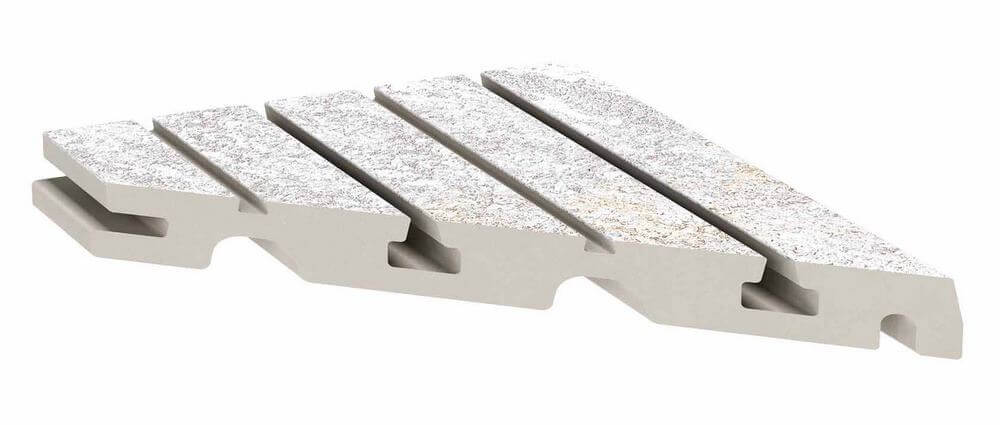

ANGULO REJILLA IZQ ROCA POLAR 245X33

LEFT GRATING CORNER*

24.5 x 33 cm – 9.6” x 13.0”

rectified
C-3

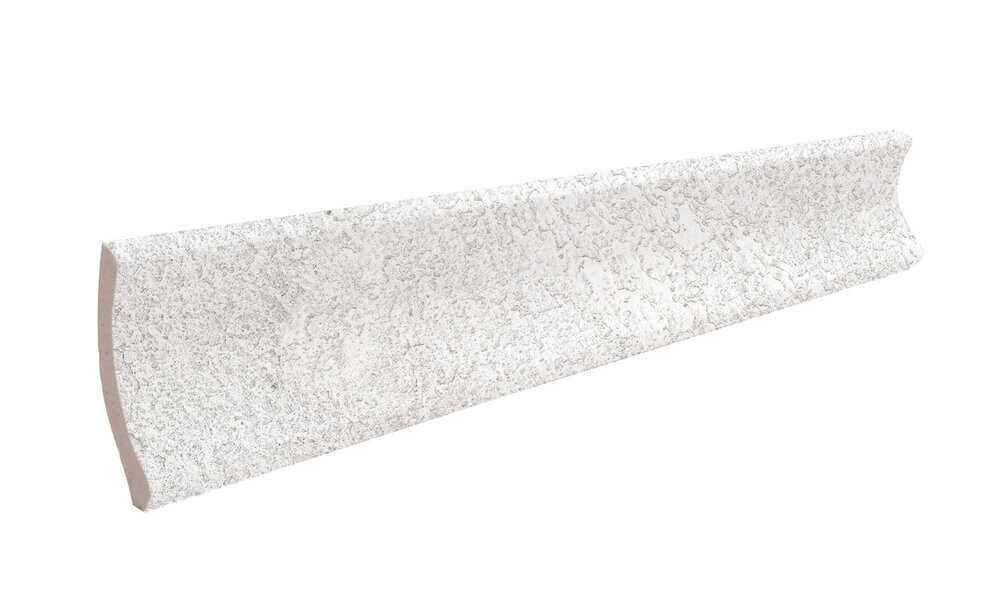

MEDIA CANYA ROCA POLAR 33X4CM

INTERNAL COVE

33 x 4 cm – 13.0” x 1.6
r-3 cm

UNYA-ROCA-POLAR-4X4CM

INTERNAL CAP

4 x 4 cm – 1.6”x 1.6”

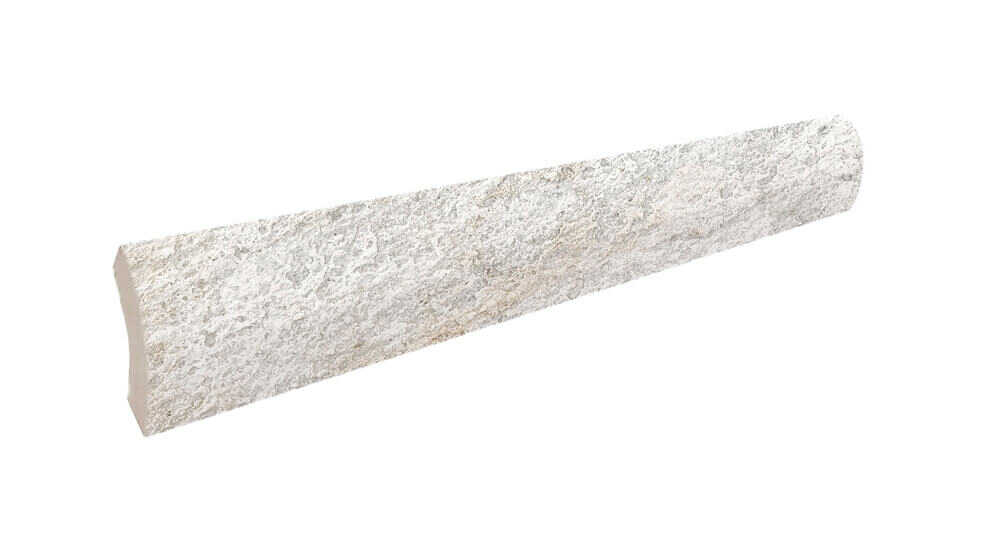

ARISTA ROCA POLAR 33X4CM

EXTERNAL COVE

33 x 3 cm – 13.0”x 1.2”
r-3 cm

UNYA-ARISTA-ROCA-POLAR-3X3CM

EXTERNAL CAP

3 x 3 cm – 1.2”x 1.2”

VIDEO

ROCA
DIMENSIONS
BOXES
PALLETS
MANUFACTURING DIMENSIONS
33 x 33 cm - 10 mm Base
9 pcs. / m2
9 pcs. / 22.18 Kg
52 boxes / 1,153 Kg
-
33 x 66.5 cm - 10 mm Base
4.5 pcs. / m2
5 pcs. / 25.38 Kg
40 boxes / 1,015 Kg
-
33 x 33 x 4 cm - 13 mm step tread ML
3 pcs. / ml
4 pcs. / 13.40 Kg
44 boxes / 590 Kg
-
33 x 33 x 4 cm - 14 mm HR bevel
-
1 pcs. / 4.00 Kg
92 boxes / 368 Kg
-
39.5 x 17.5 cm left/right HR skirting board
-
14 pcs. / 10.00 Kg
54 boxes / 540 Kg
-
33 x 33 x 3 cm - 12 mm square step tread
3 pcs. / ml
4 pcs. / 12.04 Kg
56 boxes / 675 Kg
-
42.3 x 17.5 left/right Straight Skirting Board
-
14 pcs. / 10.00 Kg
54 boxes / 540 Kg
-
9 x 33 cm - 11 mm skirting
3 pcs. / ml
24 pcs. / 13.92 Kg
68 boxes / 947 Kg
-
28 x 66.5 cm overflow edge
1.5 pcs. / ml
2 pcs. / 13.60 Kg
72 boxes / 980 Kg
-
31 x 31 cm overflow edge corner
-
1pcs. / 4,30Kg
92 boxes / 396 Kg
-
24.5 x 24.5 cm grating
4 pcs. / ml
6 pcs. / 15.78 Kg
57 boxes / 900 Kg
-
24.5 x 33 cm left/right grating angle
-
1 pcs. / 4.50 Kg
82 boxes / 369 Kg
-
33 x 4.2 cm - r-3 Corner Cove
3 pcs. / ml
52 pcs. / 13 Kg
64 boxes / 832 Kg
-
4.2 x 4.2 cm corner cove base
-
4 pcs. / 0.4 Kg
72 boxes / 30 Kg
-
33 x 3.3 cm - r-3 external cove
3 pcs. / ml
70 pcs. / 13 Kg
64 boxes / 832 Kg
-
3.3 x 3.3 cm external cap
-
4 pcs. / 0.4 Kg
72 boxes / 30 Kg
-
