MARBLE

NUBIA

EXTRUDED TILE · * PORCELAIN TILE

PURE BRUTALIST STYLE
IN&OUT
LARGE FORMATS
STAIRS
SWIMMING POOLS

NUBIA/ NUBIA

VARIANTS

FIELD TILES

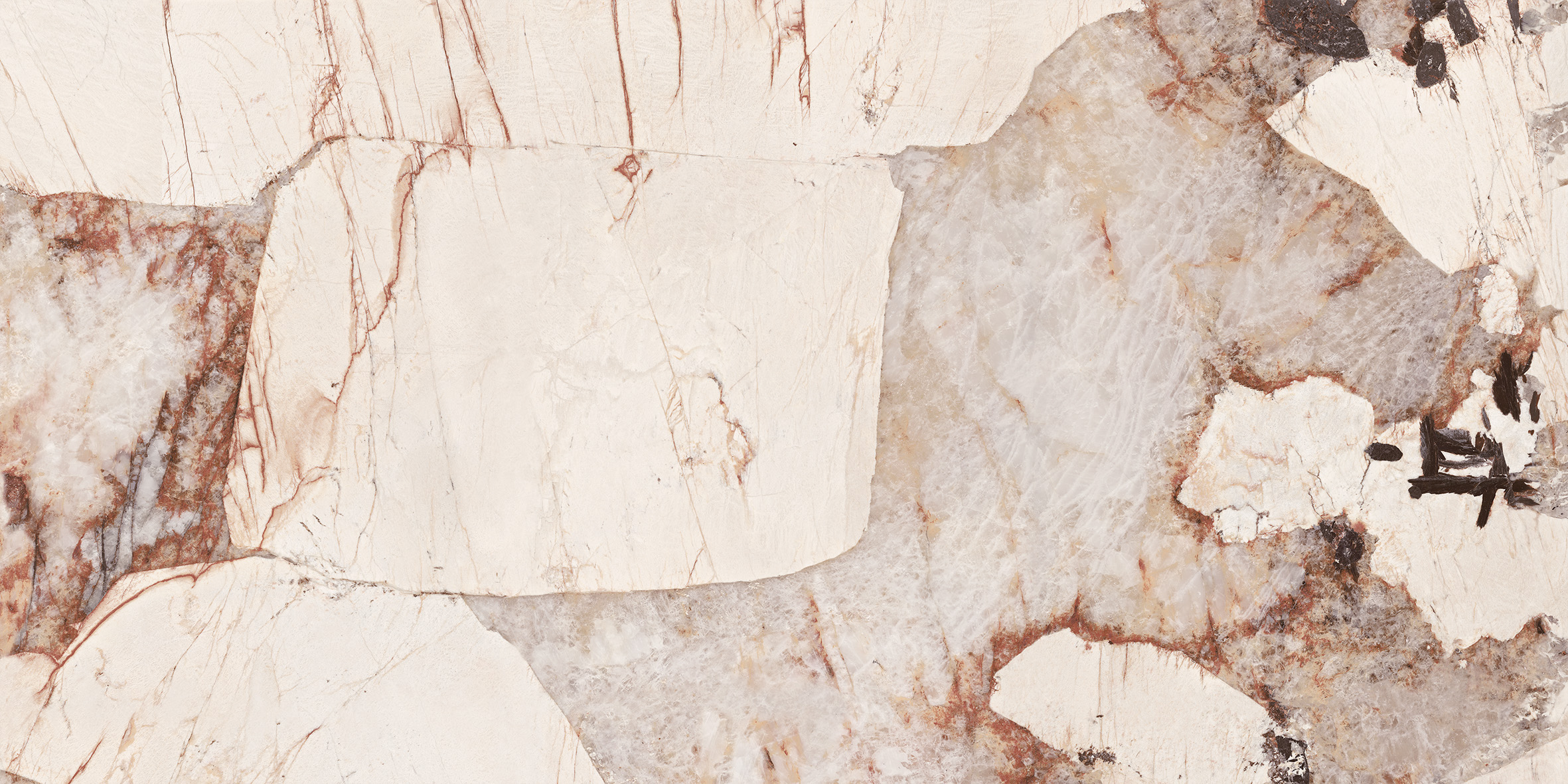

60 × 120*

60 x 120 cm – 23.6”x 47.2”

10 mm
rectified
R9 / R12/C Anti-slip

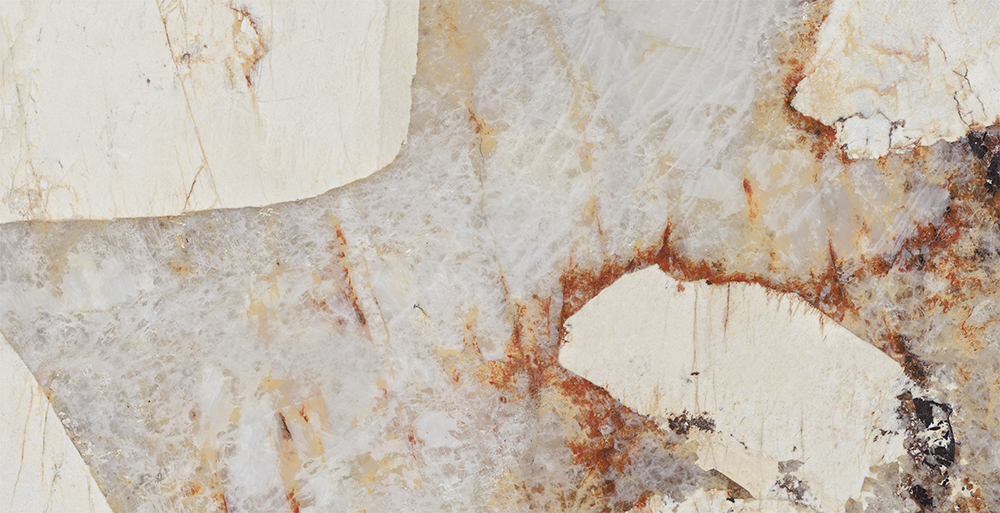

33×66.5

33 x 66.5 cm – 13.0”x 26.2”

10 mm
R9 / R12/C Anti-slip

SPECIAL PIECES

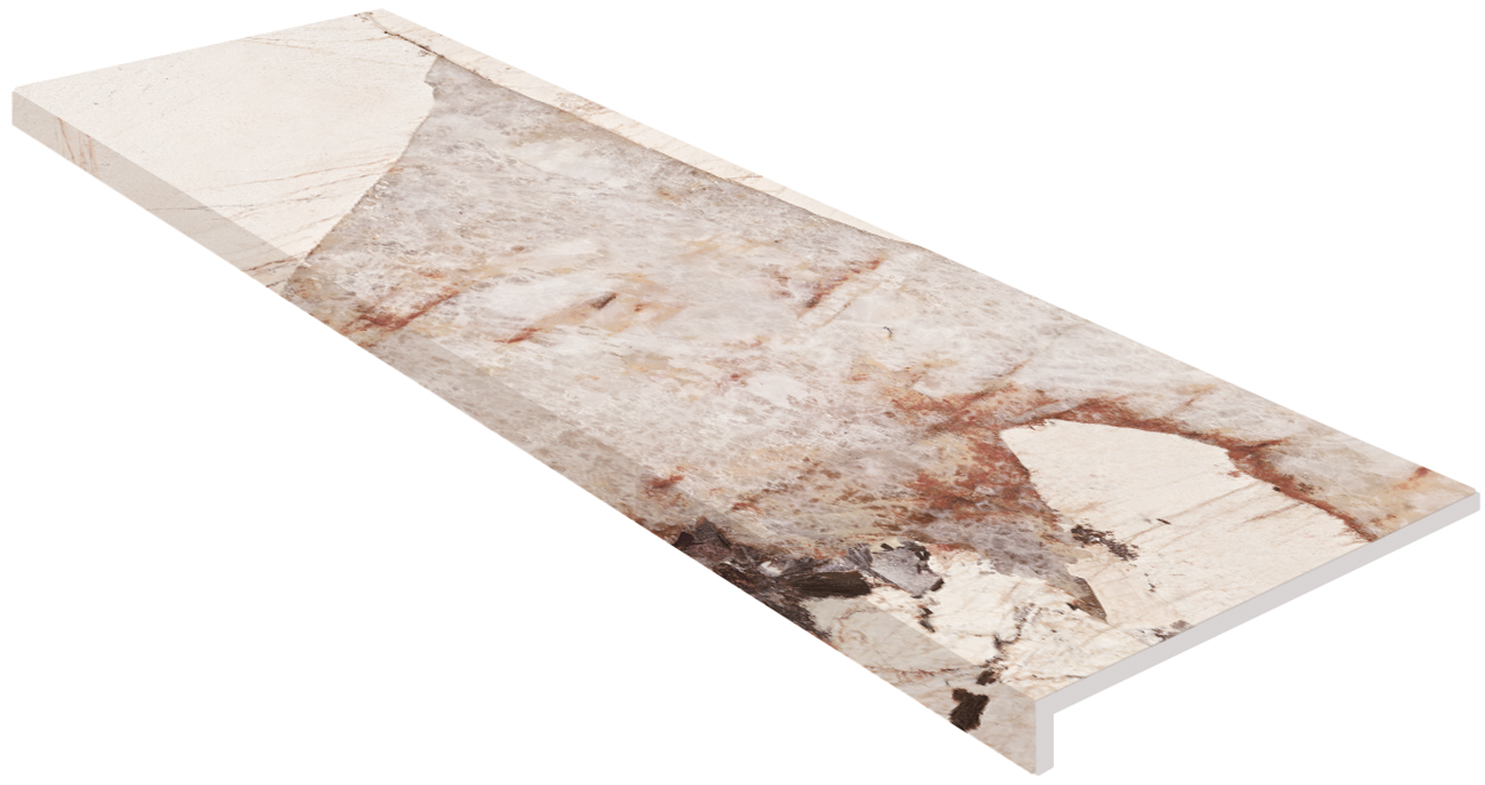

120 SQUARE STEP TREAD

33 x 120 x 3 cm – 13.0”x 47.2”x1.2”

12 mm
rectified
R9 / R12/C Anti-slip

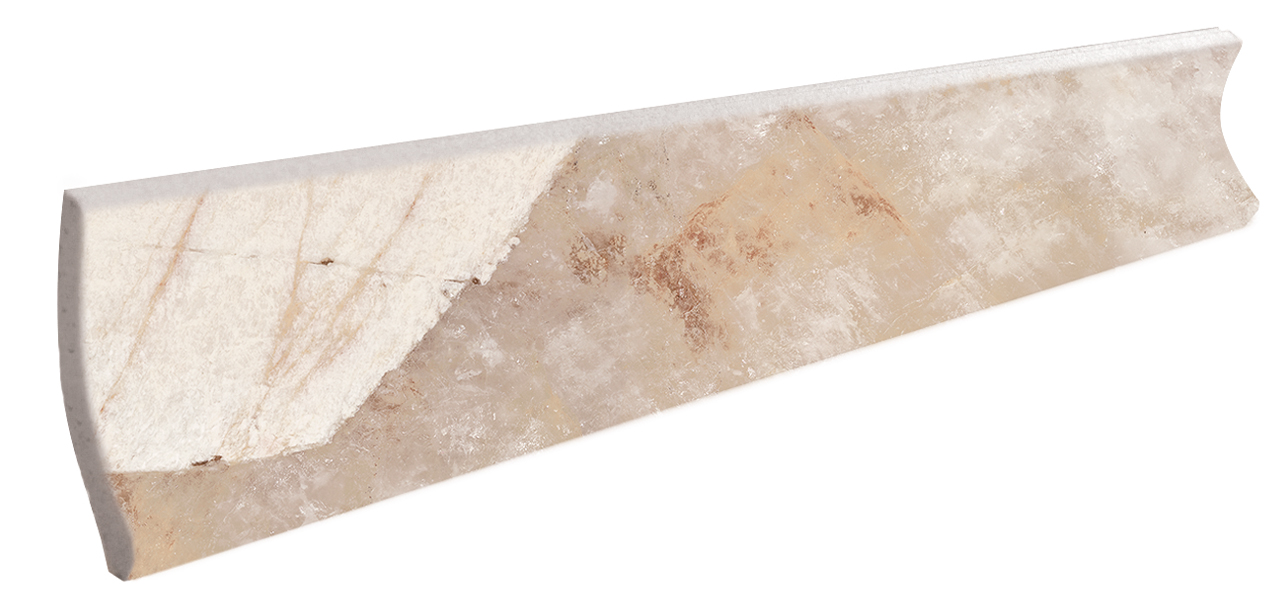

INTERNAL COVE

4 x 33 cm – 1.6” x 13.0”
r-3 cm

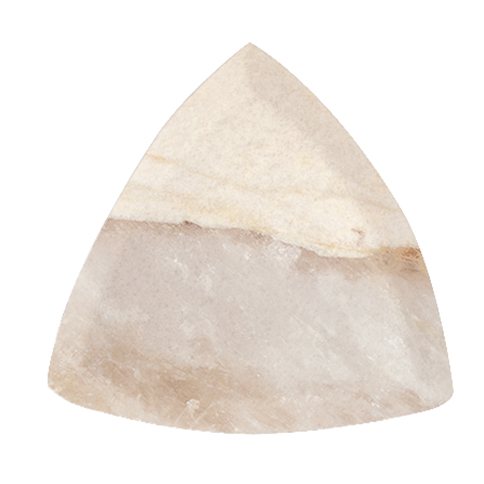

INTERNAL CAP

4 x 4 cm – 1.6”x 1.6”

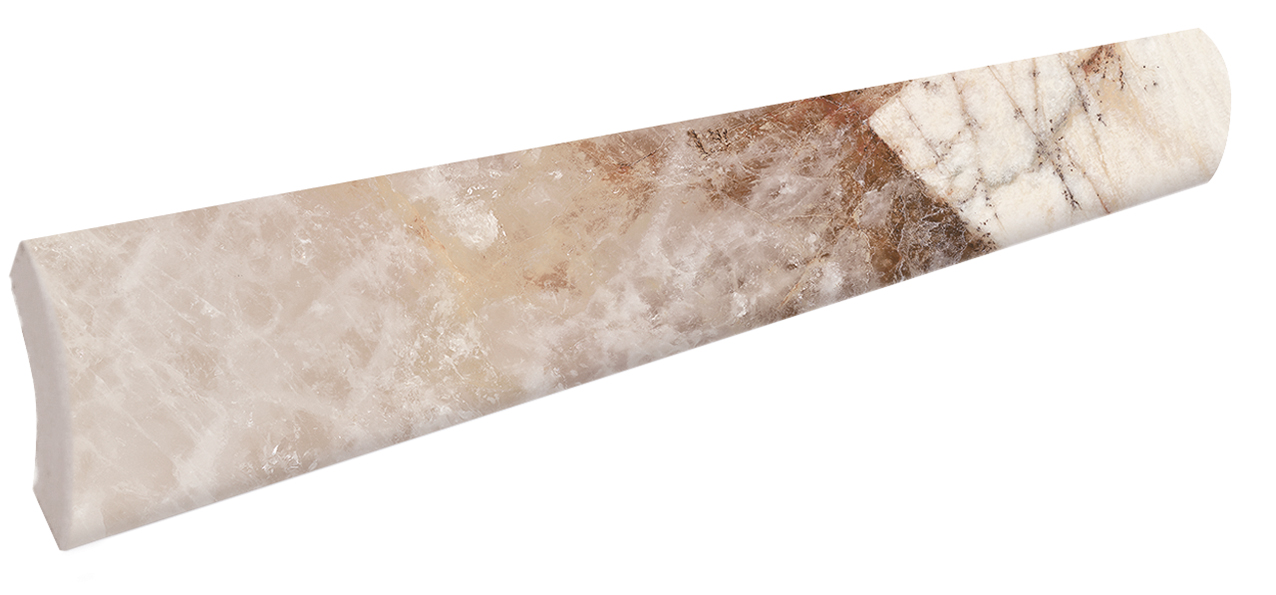

EXTERNAL COVE

3 x 33 cm – 1.2” x 13.0”
r-3 cm

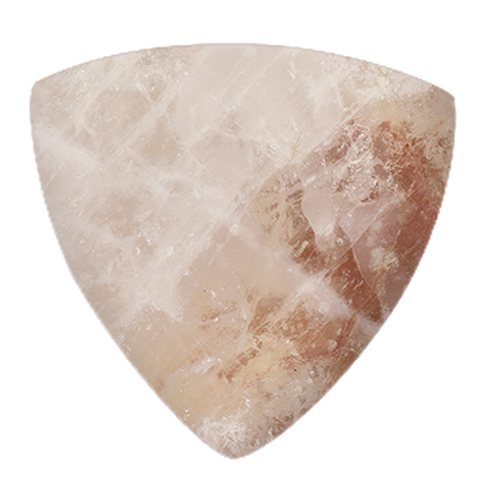

EXTERNAL CAP

3 x 3 cm – 1.2”x 1.2”

12 mm
rectified
R9 / R11/C Anti-slip

NUBIA	PIECES	BOXES	PALLETS	MANUFACTURING MEASURES
60 x 120 cm - 10 mm Field tile	1.39 pcs / m2	2 pcs. / 33,82 Kg	32 boxes / 1.082 Kg	-
33 x 66.5 cm - 10 mm Field tile	4.5 pcs. / m2	5 pcs. / 25.38 Kg	40 boxes / 1,015 Kg	-
33 x 120x 4 cm - 12 mm Square step tread	0.83 pcs / ml	2 pcs. / 25.90 Kg	11 boxes / 285 Kg	-
4x33 cm r-3 Inernal cove	3 pcs /ml	52 pcs. / 13 Kg	64 boxes / 832 Kg	4,2x33 cm
4x4 cm Internal cap	-	4 pcs. / 0,40 Kg	72 boxes / 30 Kg	4,2x4,2 cm
3x33 cm - r-3 External cove 3	3 pcs /ml	70 pcs. / 13 Kg	64 boxes / 832 Kg	3-3x33 cm
3 x 3 cm External cap	-	4 pcs. / 0,40 Kg	72 boxes / 30 Kg	3,3x3,3 cm
